Product Description

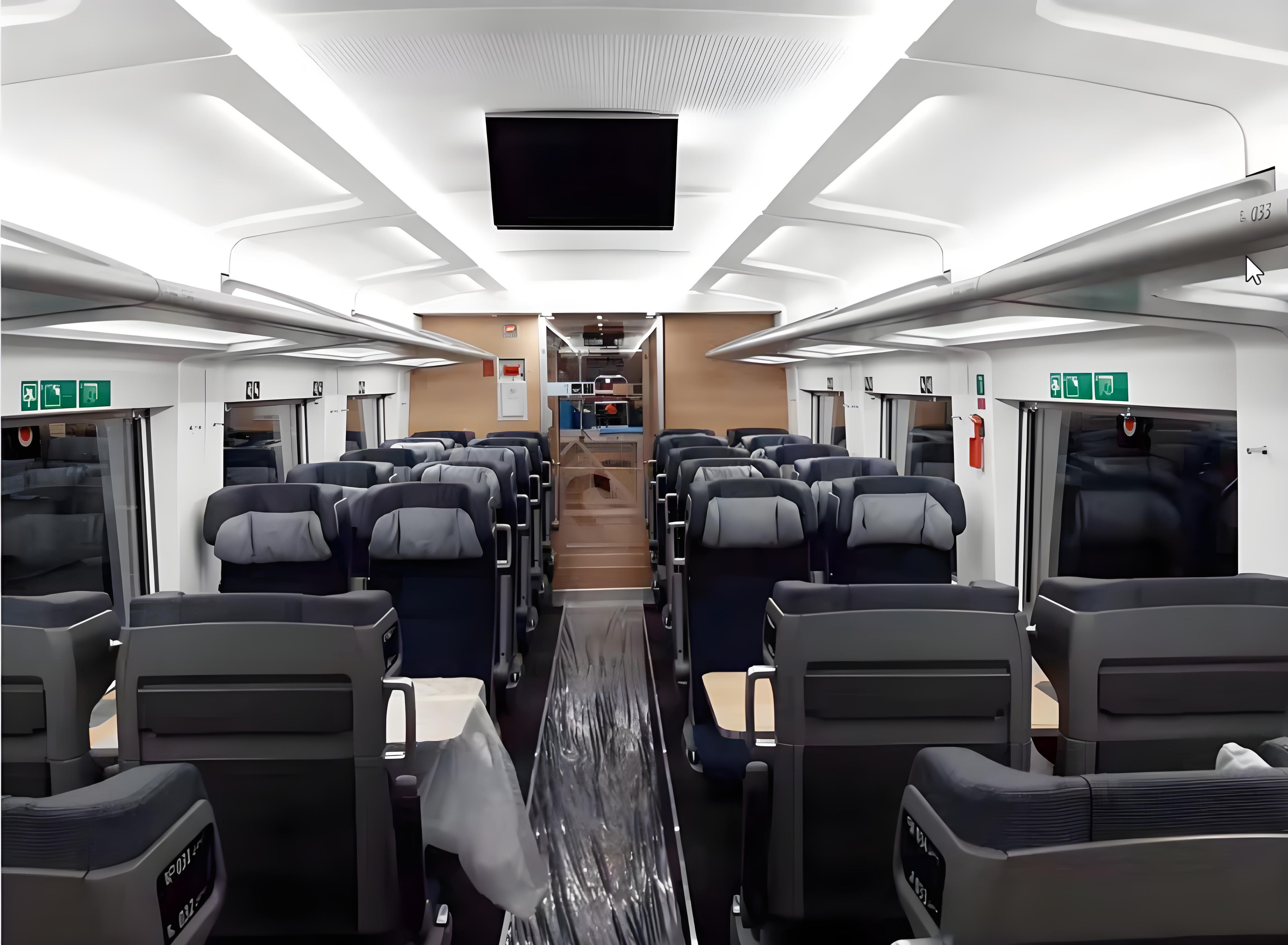

· Ceiling strip HT180 is designed for DB project in German and DSB project in Denmark, installed on the side ceiling panel. It is a modular lighting system designed for indirect illumination of the interior of public transport vehicles in Europe.
· It is an indirect lighting fixture, which is used as the main lighting of the passenger compartment to provide sufficient lighting for the compartment.
· Centralized power supply is used to power the lighting strip.
· Thanks to the variable lengths, it is possible to create continuous lighting strip along the entire vehicle length.
· It provides soft and comfortable light.
Standard Accessories
· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
· Lamp cover is made of PC (complying EN45545-2 HL3)
· WAGO connector
· Dimming and tunable
· Rated power: 12W/m
· LED chipset: 2835
Options
· Alternative LED light source
· Alternative color surface treatment
· Alternative customized dimensions
Product Specification
| Length | Power Supply | Light Source | Dimming | Color Temperature | Dimming Range |
| 890mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 915mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1090mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |

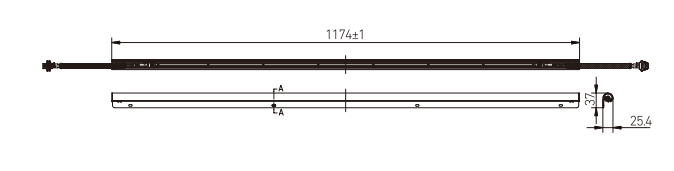

| 1174mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1250mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1291mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1409mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1504mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1525mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1553mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1632mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1676mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 1747mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
| 2041mm | DC110V | 2835 | YES | 2700~5500k | 10~100% |
