Variable Length HT210 Ceiling Strip Lighting for LRV/Train Interior

Brand Name : HTR

Model Number : HT210

Place of Origin : CHINA

MOQ : 200PCS

Price : Ngotiable

Payment Terms : L/C,T/T

Supply Ability : 50000 pcs per month

Delivery Time : Ngotiable

Packaging Details : Export packaging

Power : DC24V

Light Source : 2835

Color Temperature : 3000K/4000K

Dimming Range : 35%/30%/50%/70%/100%

Dimming : YES

Contact Now

Product Description

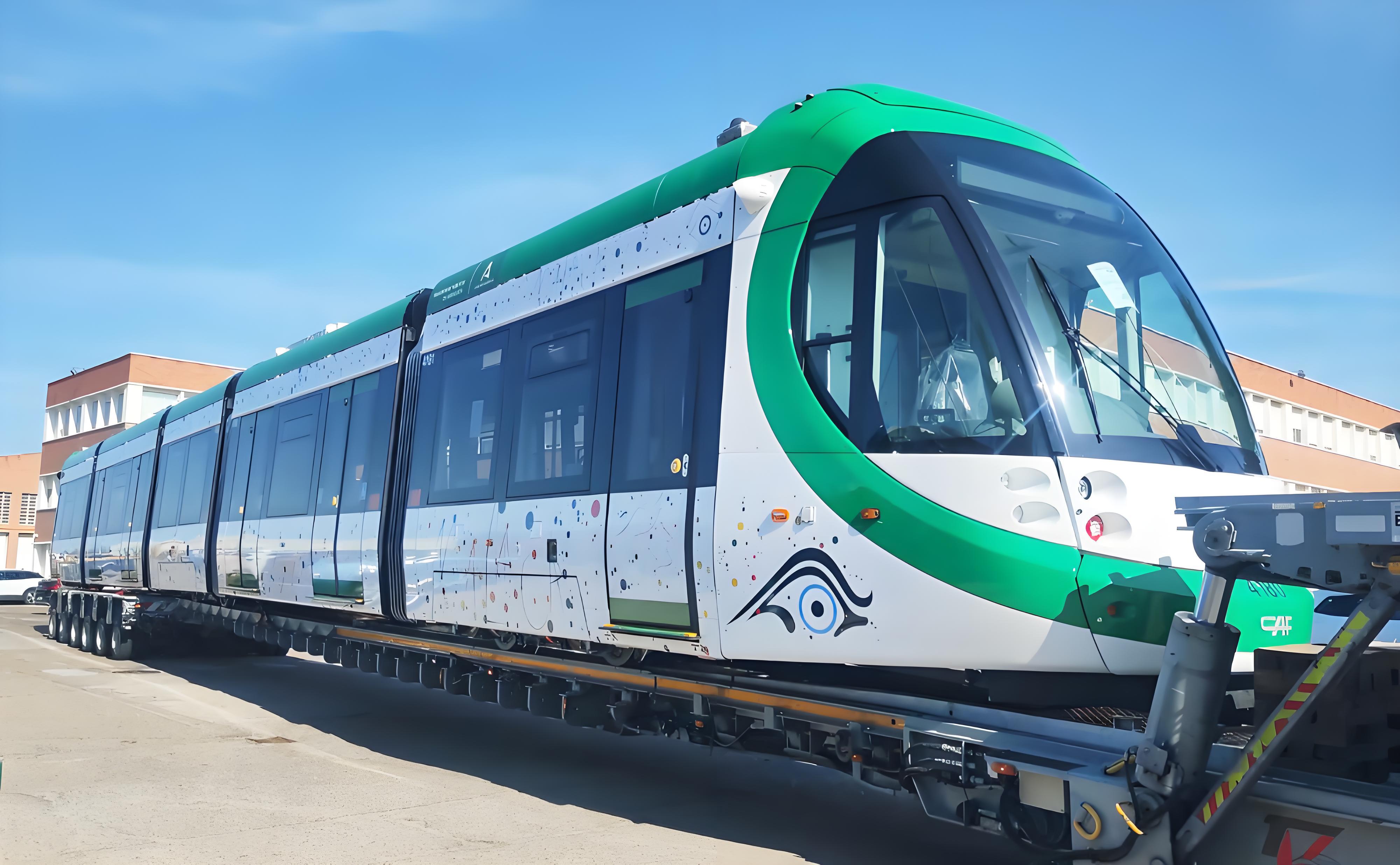

· Ceiling strip HT210 series is designed for tram/LRV platform for CAF, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles. Similar lighting design used in many different cities in Europe and Asia.

· The Driver is integrated for power supply.

· Thanks to the variable lengths, it is possible to create continuous lighting strip along the entire vehicle length.

· It provides soft and comfortable light.

Standard Accessories
· The lamp body is sheet metal parts with AL profile, and the surface is anodized, with good corrosion resistance.
· Luminaires are integrated with ventilation vents.
· WAGO connector.
· Dimming.
· Rated power: 13W/m.
· LED chipset: 2835.

Options
· Alternative LED light source
· Alternative colour surface treatment
· Alternative customised dimensions

Product Specification

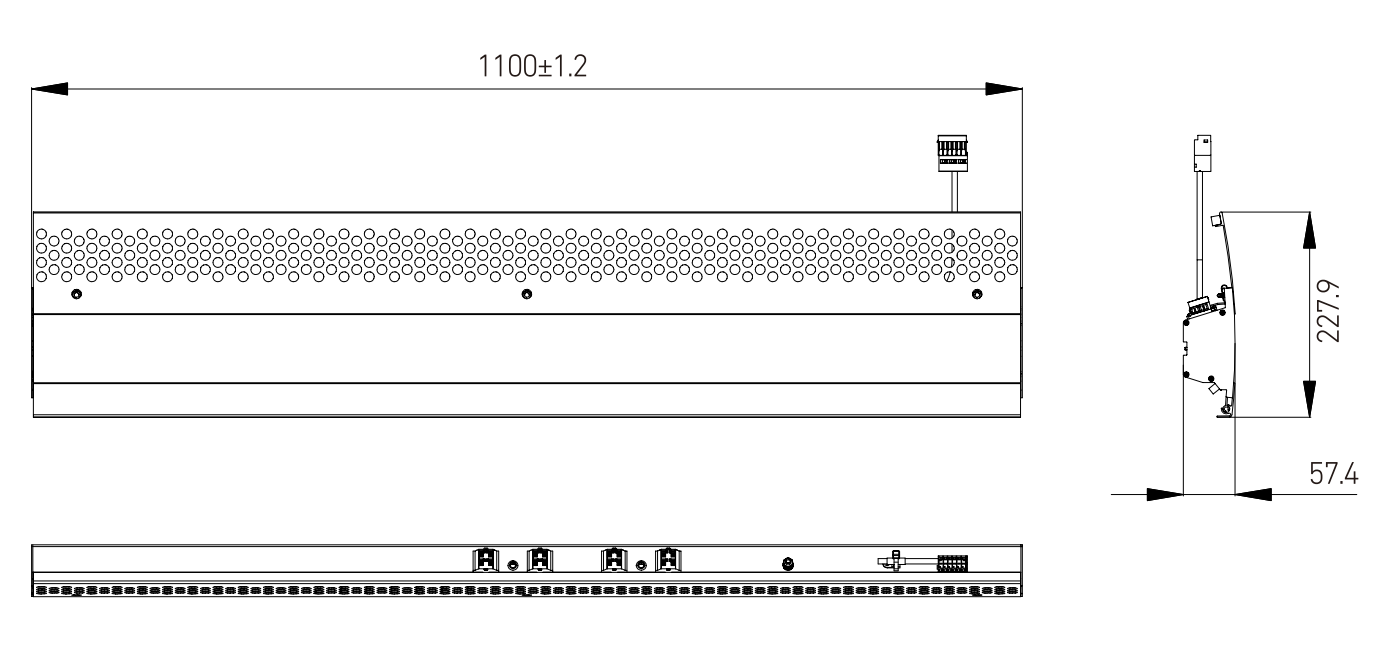

Length	Power Supply	Light Source	Dimming	Color Temperature	Dimming Range
1100	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
3534	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
3686.5	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
3788	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
4734	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
5236.5	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
5675	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
5932.5	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
6033	DC24V	2835	YES	3000K/4000K	35%/30%, 50%, 70%, 100%
